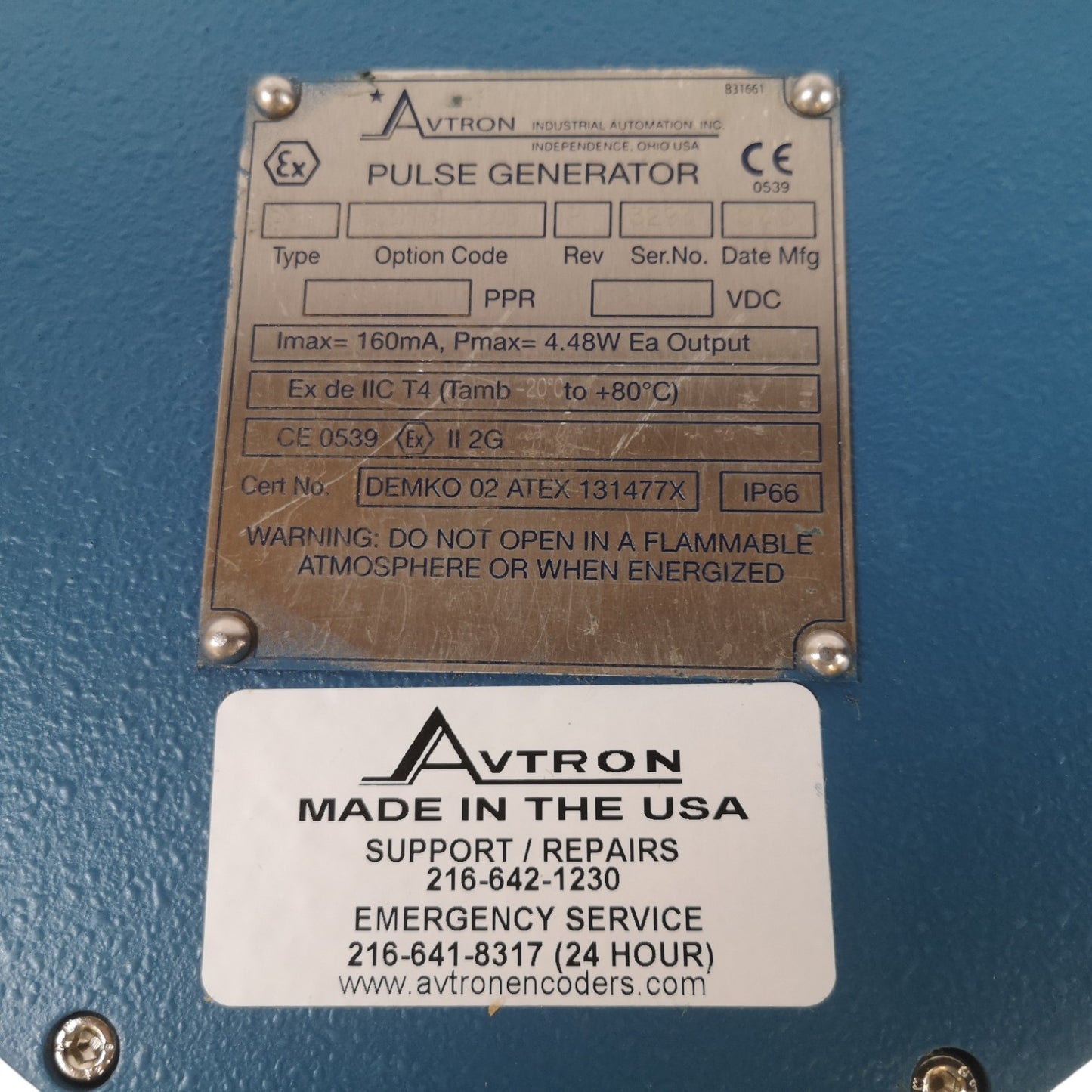

Avtron M6 Hazardous-Duty Rotary Encoder – 5–24 VDC, ~120 mA, up to 5000 RPM (Incremental, A/B/Z), IP66

Avtron M6 Hazardous-Duty Rotary Encoder – 5–24 VDC, ~120 mA, up to 5000 RPM (Incremental, A/B/Z), IP66

$1,449.90 USD
$1,449.90 USD
Sale Sold out

Low stock: 3 left

View full details
Technical specifications
The Avtron M6 is a heavy/mill-duty incremental rotary encoder designed for hazardous locations (ATEX Zone 1) and severe industrial environments. Using magnetic sensing and a solid-metal rotor, it withstands shock, vibration and contamination far better than optical encoders. M6 models are available in hollow-shaft (1″ to 1-1/8″ bores) and solid-shaft versions, with quadrature A/B and index Z outputs, and multiple line-driver voltage options. Typical applications include oil & gas, drilling, steel mills, mining and other harsh-duty drives.

Key specs:
Supply voltage: 5–24 VDC (per line-driver option codes 1/2/3).
Current draw: ~120 mA (no load).
Max speed: 5000 RPM (M6-4 / M6-5); 3600 RPM (M6-6 / M6-7).
Outputs: Incremental A/B (with complements) + Z; up to 150 kHz; multiple base PPR (e.g., 256/512/1024/1200).
nidec-fm-image.s3.amazonaws.com
Enclosure: IP66; hazardous-area rating Ex de IIC T4 Gb (–20…+80 °C std.).
Mounting: Hollow-shaft clamping collar + anti-rotation arm (or solid-shaft variants).
